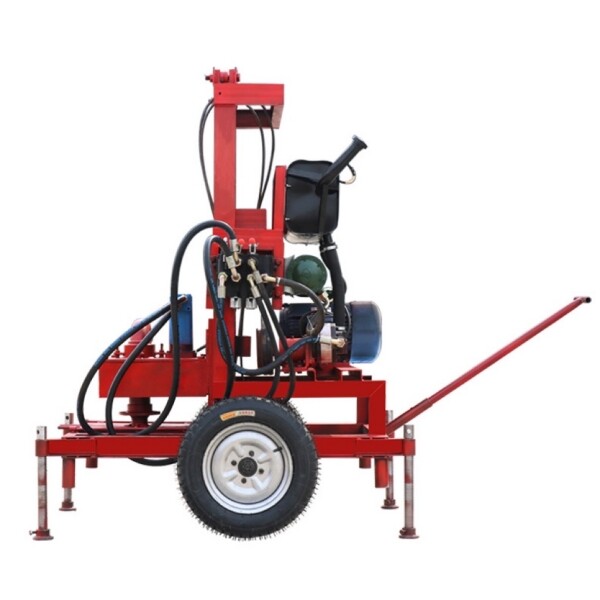

Name: Water Well Drilling Rig
Brand: Tytion
SKU: 238235738

Description

Technical Parameters

Description

The water well drilling rig is mainly used for drilling civil drinking water wells, irrigation wells, ground source heat pump air conditioning wells, engineering precipitation wells, drought-resistant wells, industrial water wells, small foundation piles, acoustic pipe testing, etc.

This water well drilling rig is small in size, light in weight, and does not take up space. It can be used in yards or indoors. It adopts the hydraulic working principle and is equipped with a radiator, so this drilling rig can continue to work at a high efficiency.

Parameter

Rated output torque(N.M)		500
Drilling depth(M)		0-120
Drilling diameter(MM)	Open hole	500
	End hole	150-500
Drilling pipe		Ø60*1500
Vertical shaft stroke (MM)		900
Rated pulling force (KN)		10
Drilling Angle range(°)		0-360
Motor power(KW)		7.5

Advantages

Best Working Performance

Hydraulic power head

Strong drilling power;

High efficiency;

Large-diameter water injection holes;

Sufficient water volume;

Fast hole-making speed

Power

Optional power motor;

Diesel engine

Traction rod/rubber wheel

Traction can be used for walking;

Economical and time-saving of the water well drilling rig

Pictures

Company profile

Henan Tytion Machinery Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of engineering machinery, road machinery, bridge and tunnel equipment, mining machinery and other products.

The cement grouting pump, mortar grouting pump, concrete pump, dry/wet type shotcrete machine, mortar plaster machine, as well as various types of mixers, etc. which produced by the company are well received by customers at abroad, and we have been constantly ensuring the steady improvement of product quality.

Grout Pump

Cement Grout Pump

Mortar Grout Pump

Concrete Grout Pump

Shotcrete Machine

Dry Concrete Shotcrete Machine

Wet Concrete Shotcrete Machine

Mortar Spraying Machine

Drilling Rig

Anchor Drilling Rig

Water Well Drilling Rig

Crawler Drilling Rig

Our Services

Pre-sale service:

Design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase program;

On-sale service:

Accompany with you to look around our factory, explain the manufacture process of our machine, and check the working performance of our machine;

After-sale service:

Engineers are available to install and debugging equipment of the whole production line, besides, commissioning and training operators on site.

FAQ

Q: How about the quality of machines?

A: Our machines adopt CR-Steel and advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality.

Q: About the delivery time?

A: Generally, if have in stock, the machine will be about 3-5 days after your deposit, which also will be on basis of your order.

Q: As for the warranty?

A: We provide 1-2 years for warranty according to the machine.

Q: Which kind of payment is available for us?

A: T/T, L/C and Western Union are common for us.

Q: How about the service?

A: Provide overseas installation, debugging and training the relating work.

Q: Is there a discount on your price about this machine?

A: Yes, we will give you a big discount about the machine.
