Product Description

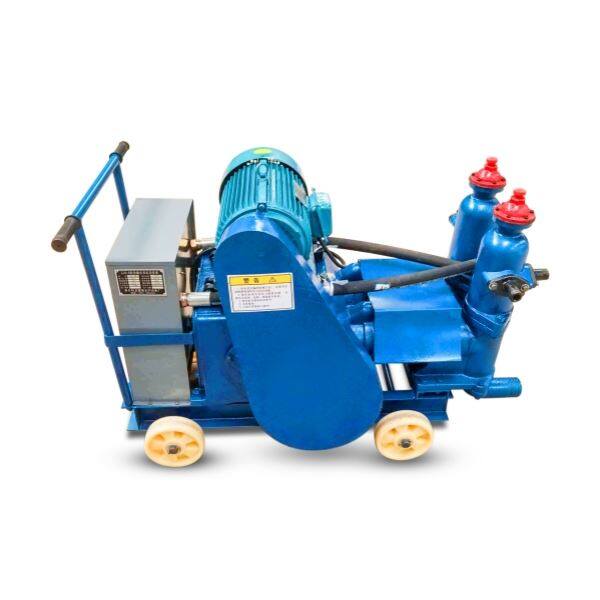

The HJB-6 cement grouting pump is a horizontal double-acting reciprocating piston pump. The pump has two independent cylinders, two slurry suction ports and two slurry discharge ports. It can perform double-liquid grouting operations. The slurry discharge ratio is 1:1. The grouting speed is controlled by the gearbox and divided into 4 speeds, corresponding to different slurry discharge volumes. Since the two cylinders of the cement grouting pump output slurry at the same time, through the mixer, the mixing can achieve a more accurate mixing ratio, and the gel time of the slurry is easier to control, so that the diffusion radius of the slurry can be effectively controlled, thereby improving the quality of the grouting project and reducing the cost of the grouting project. The double-liquid variable cement grouting pump is mainly used for soft foundation reinforcement, tunnel grouting, water blocking and consolidation grouting of broken rocks.

application

HJB-6 cement grouting pump can be applied to projects such as drilling grouting, highway collapse grouting, and foundation leakage filling, which can transport cement slurry, yellow mud slurry, water glass, oil, water and other media.
HJB-6 cement grouting pump is a double-cylinders double-acting piston pump, it is also referred to as a mortar pump. It is widely used and easy to operate.
HJB-6 cement grouting pump is widely used in roads, Bridges, municipal buildings, tunnels, ports, DAMS, subways, underground and other construction projects and construction products pressure grouting.

Parameter

Model	HJB-3	HJB-6
Cylinder number	single	double
Flow capacity (m³/h)	3	6
Max. Pressure (Mpa)	1.5	3
Motor power (KW)	3	4
Input speed (r/min)	1440	1440
Size of suction pipe (mm)	51	51
Size of slurry discharge pipe (mm)	32/38	32/38
Conveying distance horizontal/vertical (m)	20-50 / ≤20	20-50 / ≤20
*Outward Dimensions (LWH) (mm)*	1250×430×850	1250×430×850
Weight( Kg)	250	320

Features

Strong power, large displacement and pulse-free operation
Pure copper motor: The motor is wrapped with pure copper inside, which has a longer service life
Pressure gauge: It can realize automatic control and alarm for various gas and liquid media with measured pressure through the instrument
Piston pump: adopts electrical automatic control safety device
Double-cylinders: Supports simultaneous delivery of two liquids with dual inlet and outlet, large slurry output, high efficiency and time saving

Pictures

Our Services

Pre-sale service:

Design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase program;

On-sale service:

Accompany with you to look around our factory, explain the manufacture process of our machine, and check the working performance of our machine;

After-sale service:

Engineers are available to install and debugging equipment of the whole production line, besides, commissioning and training operators on site.

FAQ

Q: How about the quality of machines?

A: Our machines adopt CR-Steel and advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality.

Q: About the delivery time?

A: Generally, if have in stock, the machine will be about 3-5 days after your deposit, which also will be on basis of your order.

Q: As for the warranty?

A: We provide 1-2 years for warranty according to the machine.

Q: Which kind of payment is available for us?

A: T/T, L/C and Western Union are common for us.

Q: How about the service?

A: Provide overseas installation, debugging and training the relating work.

Q: Is there a discount on your price about this machine?

A: Yes, we will give you a big discount about the machine.
