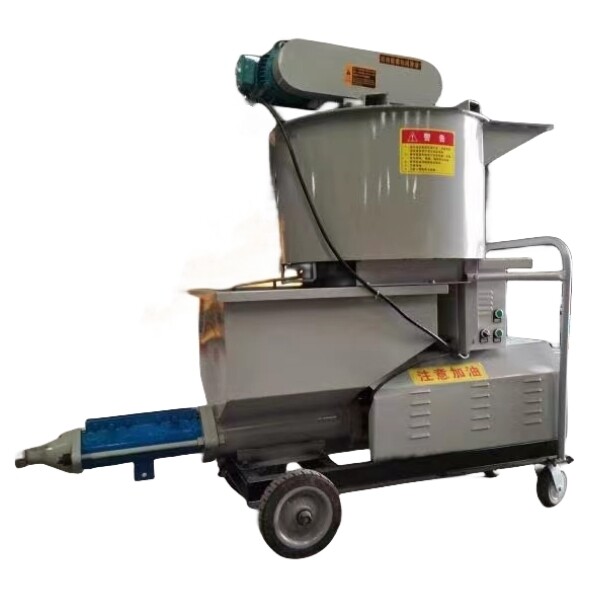

Name: Mortar Mixer And Pump
Brand: Tytion
SKU: 249815288

Description

Technical Parameters

Product introduction

The mortar mixer and pump is essential equipment in grouting engineering for soil and rock stabilization. It combines mixing and pumping functions, enabling efficient application of mortar or grout to reinforce foundations and improve stability and bearing capacity. By continuously blending and pumping the mortar, the machine ensures uniform grout distribution, filling voids, cracks, and weak areas in the ground or structure. It is widely used for foundation reinforcement, soil improvement, waterproofing, and rock mass stabilization, making it a key tool in civil engineering, construction, and geotechnical projects.

Parameter

Model		LBT2000	LBT3000	LBT5000
Pressure (MPa)		2	2-4	6
Transportation volume (L/H)		2500	3000	5000-7000
Motor power (KW)		4	5.5	7.5
Size of slurry discharge pipe (mm)		38
Max. Sand Particle size (mm)		≤4		≤8
Cement-water ratio		≥0.30		≥0.30
Hydraulic oil tank volume (L)		145		300
Conveying distance(m)	vertical	20-30	30-40	60-80
	horizontal	60-80	70-90	80-100

Products Features

Brand Quality Service

Efficient Mixing and Pumping

This machine integrates both mixing and pumping functions, enabling continuous grout delivery without the need for separate equipment.

Uniform Grout Distribution

The pump guarantees even mixing and consistent grout flow, ensuring a uniform application that effectively fills cracks, voids, and weak spots in the ground or structure.

High Pumping Capacity

With a high pumping capacity, the mortar mixer and pump can handle large grout volumes at varying pressures.

Energy-Efficient

Optimized for energy savings, the pump is equipped with different motor power, providing powerful yet energy-efficient performance for both small and large-scale applications.

Working Principle

The working principle of the mortar mixer and pump is divided into two main steps: the stirring process of the grouting material and the grouting process.

Stirring Process

The grouting material is thoroughly mixed by the agitator to ensure consistent quality. The agitator typically consists of a stirring blade and a rotating shaft, which combine to mix the material effectively through rotation and flipping.

Grouting Process

After mixing, the grouting material is delivered to the foundation hole or structural defect. The mortar mixer and pump generate pressure through the pumping system to transport the material to the desired location for grouting.

Application

Waterproofing and Leak Sealing

In underground and subterranean construction, the mortar mixer and pump is used to inject sealing compounds to prevent water ingress. It is particularly effective in sealing leaks in basements, tunnels, dams, and underground pipes, protecting structures from water damage and ensuring long-term durability.

Tunnel and Subway Construction

Grouting applications in tunnel and subway projects help reinforce tunnel walls and prevent water seepage. The mortar mixer and pump delivers the grout under high pressure to fill any gaps or voids in the tunnel structure, improving its overall stability and safety.

Concrete Repair and Restoration

The pump is used for the repair of concrete structures, injecting grout into cracks or defects in concrete foundations, walls, or beams. This helps restore structural integrity and prevent further damage.

Slurry Displacement

The pump can be used to displace slurry in deep foundation applications, such as diaphragm wall construction and pile grouting, ensuring the proper distribution of slurry and improving the strength of the base.

Pictures

Company profile

Henan Tytion Machinery Co., ltd.

We are an enterprise focused on the R&D, manufacturing, and sale of construction machinery. We are committed to environmental protection and energy efficiency. Our main products include cement, concrete, and mortar grout pumps, dry and wet shotcrete machines, mortar spraying machines, small drill rigs, and other construction equipment.

High Quality

Integrated factory strength to support all kinds of construction machine customization

Advanced Equipment

Mature technology can ensure the high efficiency of the machine

Professional Team

Provides customers with more comprehensive, professional and efficient technical consultation

Custom Service

24-hour online service to provide customers with worry-free machine after-sales service

Our Service Processes

Pre-sales Consultancy

Confirmation of order

Production

Multi-Channel Shipping

Confirmation of recei

After-sale Services

Our Warehouse

Adequate supply ensures the timeliness of delivery

pZ Dry Shotcrete Machine

BW250 Grout pumps

Various pipes in storage

Hydraulic mortar pumps

Our Services

Pre-sale service:

Design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase program;

On-sale service:

Accompany with you to look around our factory, explain the manufacture process of our machine, and check the working performance of our machine;

After-sale service:

Engineers are available to install and debugging equipment of the whole production line, besides, commissioning and training operators on site.

FAQ

Q: How about the quality of machines?

A: Our machines adopt CR-Steel and advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality.

Q: About the delivery time?

A: Generally, if have in stock, the machine will be about 3-5 days after your deposit, which also will be on basis of your order.

Q: As for the warranty?

A: We provide 1-2 years for warranty according to the machine.

Q: Which kind of payment is available for us?

A: T/T, L/C and Western Union are common for us.

Q: How about the service?

A: Provide overseas installation, debugging and training the relating work.

Q: What's the price of the mortar mixer and pump? Is there a discount on your price about this machine?

A: The price of mortar mixer and pump is about $ 4,200.00 - $ 10,200.00. We will give you a big discount about the machine if you are willing to buy it.
